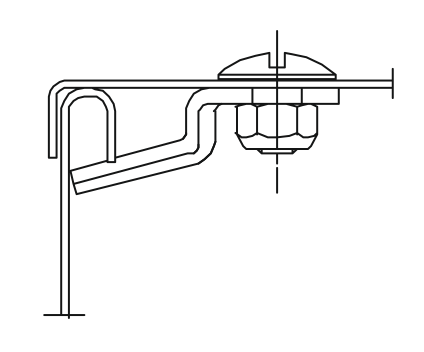

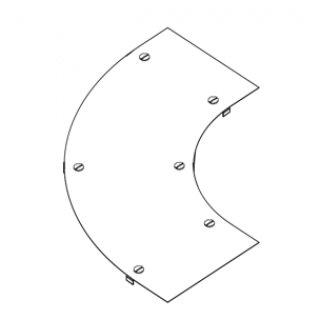

Pokrywa łuku wewnętrznego drabinki kablowej z ryglem.
Pokrywa łuku wewnętrznego drabinko kablowej z ryglem.
LIBDR
-
Karta Katalogowa LIBDR_PL
pdf | 120.16 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

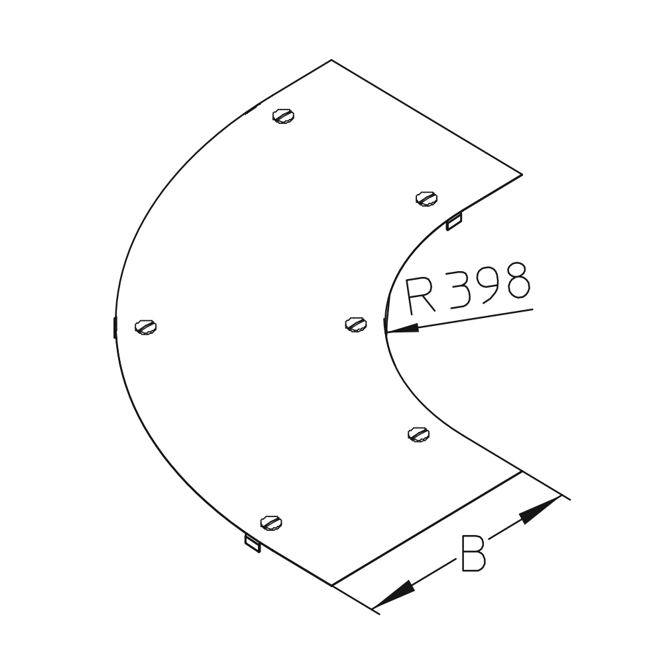

| Name | B[mm] | R[mm] | G[kg] | |
|---|---|---|---|---|
| LIBDR 10S |
104
|
398
|
0,73
|
|
| LIBDR 20S |
104
|
398
|
1,42
|
|
| LIBDR 30S |
304
|
398
|
2,84
|
|
| LIBDR 40S |
404
|
398
|
3,96
|
|
| LIBDR 50S |
504
|
398
|
6,46
|
|
| LIBDR 60S |
604
|
398
|
8,18
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | B[mm] | R[mm] | G[kg] | |
|---|---|---|---|---|
| LIBDR 10F |
104
|
398
|
0,82
|
|
| LIBDR 20F |
204
|
398
|
1,53
|
|
| LIBDR 30F |
304
|
398
|
3,04
|
|
| LIBDR 40F |
404
|
398
|
4,24
|
|
| LIBDR 50F |
504
|
398
|
6,92
|
|
| LIBDR 60F |
604
|
398
|
8,75
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | B[mm] | R[mm] | G[kg] | |
|---|---|---|---|---|
| LIBDR 10E |
104
|
398
|
0,74
|
|
| LIBDR 20E |
204
|
398
|
1,44
|
|
| LIBDR 30E |
304
|
398
|
2,87
|
|
| LIBDR 40E |
404
|
398
|
4,00
|
|
| LIBDR 50E |
504
|
398
|
6,52
|
|
| LIBDR 60E |
604
|
398
|
8,24
|
