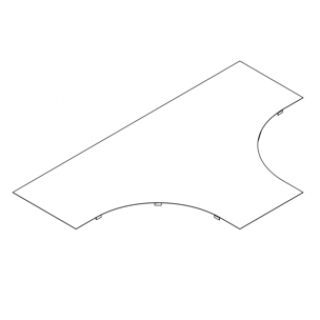

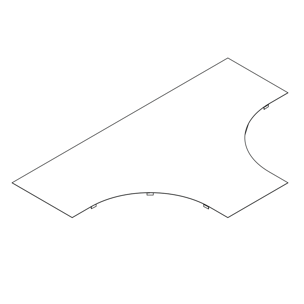

Pokrywa odgałęzienia drabinki kablowej.
Pokrywa odgałęzienia drabinki kablowej.
LAD
-
Karta Katalogowa LAD_PL
pdf | 113.04 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

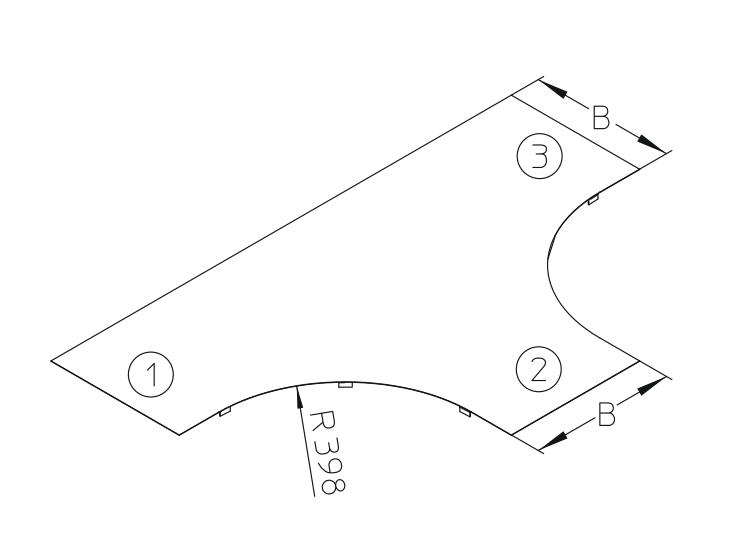

| Name | B[mm] | R[mm] | G[kg] | |
|---|---|---|---|---|
| LAD 10S |
104
|
398
|
1,55
|
|
| LAD 20S |
204
|
398
|
2,67
|
|
| LAD 30S |
304
|
398
|
5,14
|
|
| LAD 40S |
404
|
398
|
6,93
|
|
| LAD 50S |
504
|
398
|
11,06
|
|
| LAD 60S |
604
|
398
|
13,68
|
|
| LADR 10S |
104
|
398
|
1,63
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | B[mm] | R[mm] | G[kg] | |
|---|---|---|---|---|
| LAD 10F |
104
|
398
|
1,76
|
|
| LAD 20F |
204
|
398
|
2,86
|
|
| LAD 30F |
304
|
398
|
5,50
|
|
| LAD 40F |
404
|
398
|
7,42
|
|
| LAD 50F |
504
|
398
|
11,83
|
|
| LAD 60F |
604
|
398
|
14,64
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | B[mm] | R[mm] | G[kg] | |
|---|---|---|---|---|
| LAD 10E |
104
|
398
|
1,57
|
|
| LAD 20E |
204
|
398
|
2,85
|
|
| LAD 30E |
304
|
398
|
5,17
|
|
| LAD 40E |
404
|
398
|
6,97
|
|
| LAD 50E |
504
|
398
|
11,13
|
|
| LAD 60E |
604
|
398
|
13,77
|
