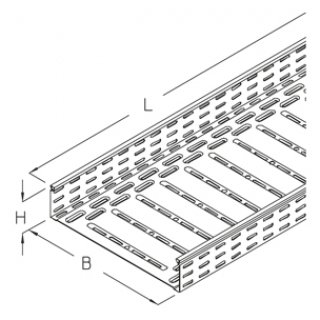

Cable tray, heavy, perforated, height=85 mm

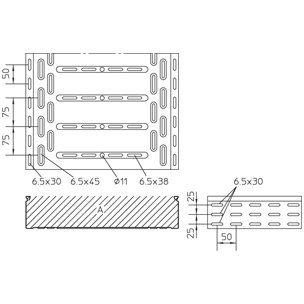

Cable tray, heavy-duty, perforated, head shape suitable for positive locking covers, with longitudinal and lateral reinforcing rims reducing bottom deflection, certified including electrical conductivity according to DIN EN 61537
| Name | H[mm] | B[mm] | L[mm] | t[mm] | A[cm2] | Qsk[kN/m] | G[kg] | |
|---|---|---|---|---|---|---|---|---|
| RGS 85-10S |
85
|
100
|
3000
|
1,5
|
81
|
0,12
|
9,84
|
|
| RGS 85-20S |
85
|
200
|
3000
|
1,5
|
163
|
0,25
|
12,84
|
|
| RGS 85-30S |
85
|
300
|
3000
|
1,5
|
246
|
0,37
|
16,14
|
|
| RGS 85-40S |
85
|
400
|
3000
|
1,5
|
328
|
0,49
|
19,45
|
|
| RGS 85-50S |
85
|
500
|
3000
|
1,5
|
411
|
0,62
|
22,75
|
|
| RGS 85-60S |
85
|
600
|
3000
|
1,5
|
493
|
0,74
|
26,07
|
