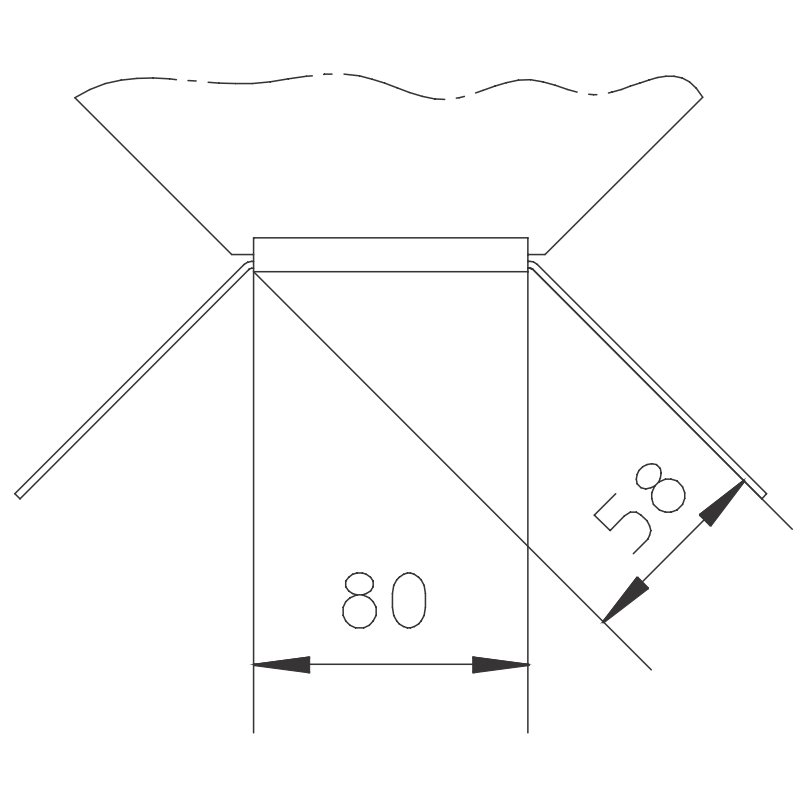

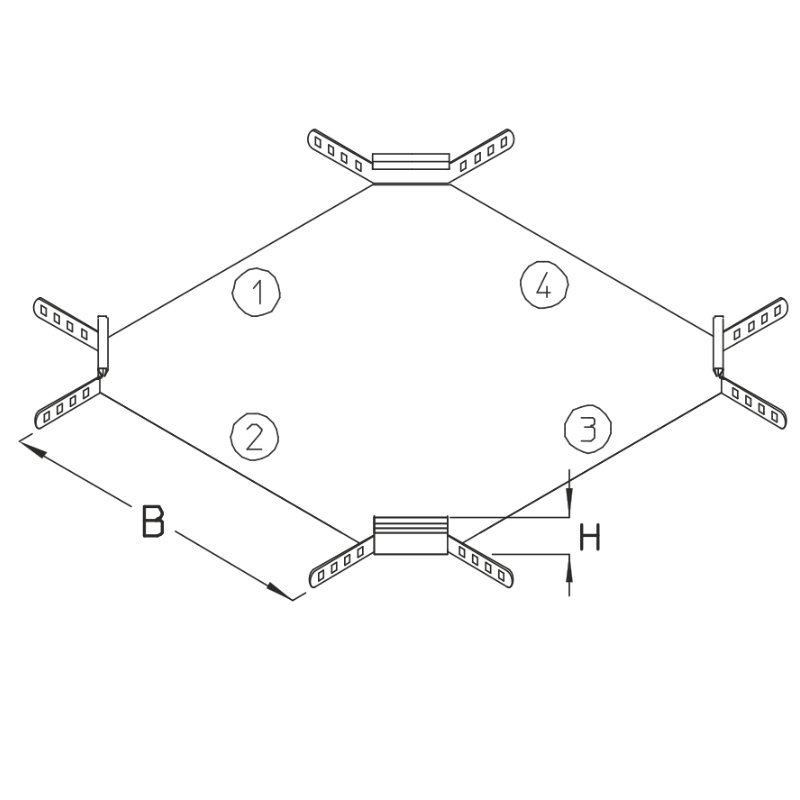

Cable tray crossover, height=42 mm
Cable tray crossover for horizontal change of direction with integrated connectors
RK 42
-
Karta Katalogowa RK 42_PL
pdf | 64.09 KB -
Data sheet RK 42_EN
pdf | 75.43 KB
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RK 42-05S |
42
|
50
|
0,87
|
||
| RK 42-10S |
42
|
100
|
1,02
|
||
| RK 42-20S |
42
|
200
|
1,44
|
||
| RK 42-30S |
42
|
300
|
2,03
|
Hot-dip galvanized, according to BS 729 (EN ISO 1461)
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RK 42-05F |
42
|
50
|
0,98
|
||
| RK 42-10F |
42
|
100
|
1,15
|
||
| RK 42-20F |
42
|
200
|
1,62
|
||
| RK 42-30F |
42
|
300
|
2,27
|
Stainless steel, according to ASTM 304 / BS 304 S 3
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RK 42-05E |
42
|
50
|
0,87
|
||
| RK 42-10E |
42
|
100
|
1,02
|
||
| RK 42-20E |
42
|
200
|
1,44
|
||
| RK 42-30E |
42
|
300
|
2,03
|
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Name | H[mm] | B[mm] | G[kg] | ||
|---|---|---|---|---|---|
| RK 42-05E4 |
42
|
50
|
0,87
|
||
| RK 42-10E4 |
42
|
100
|
1,02
|
||
| RK 42-20E4 |
42
|
200
|
1,44
|
||
| RK 42-30E4 |
42
|
300
|
2,03
|
