HB_50_01

HB 50

Declaration of conformity

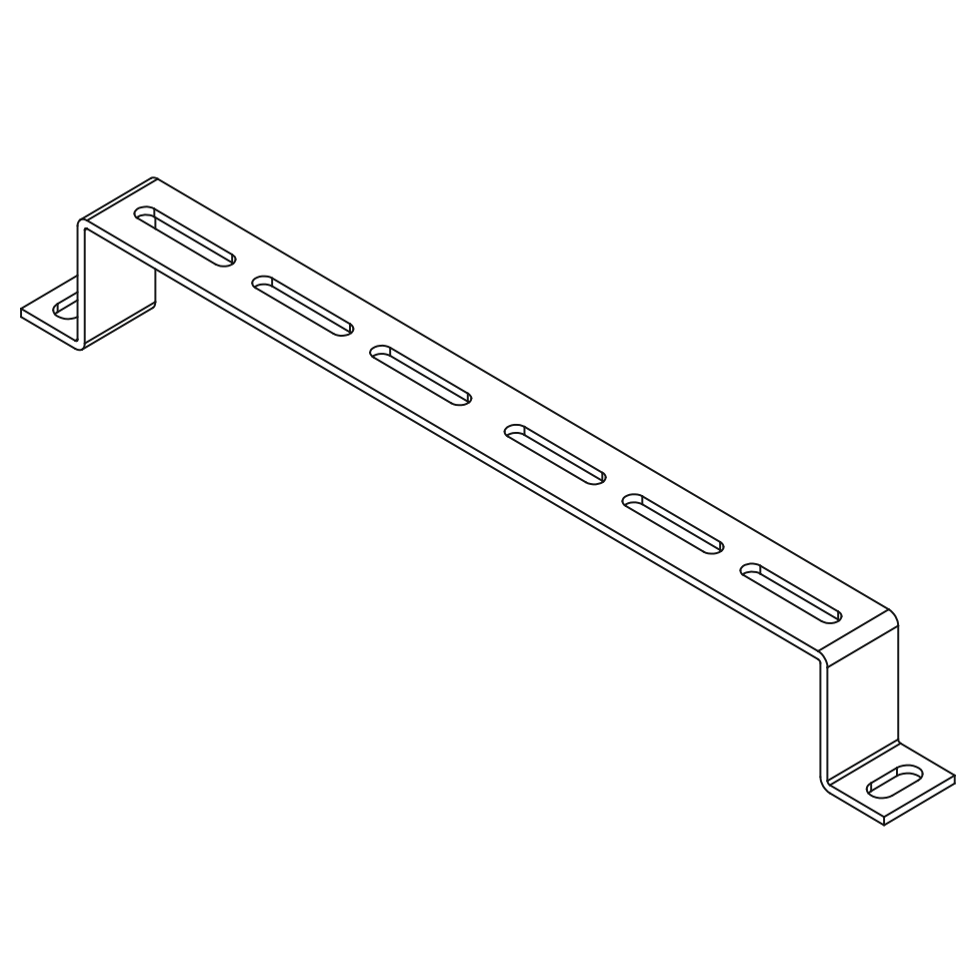

Wspornik dystansowy.

Wspornik dystansowy.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

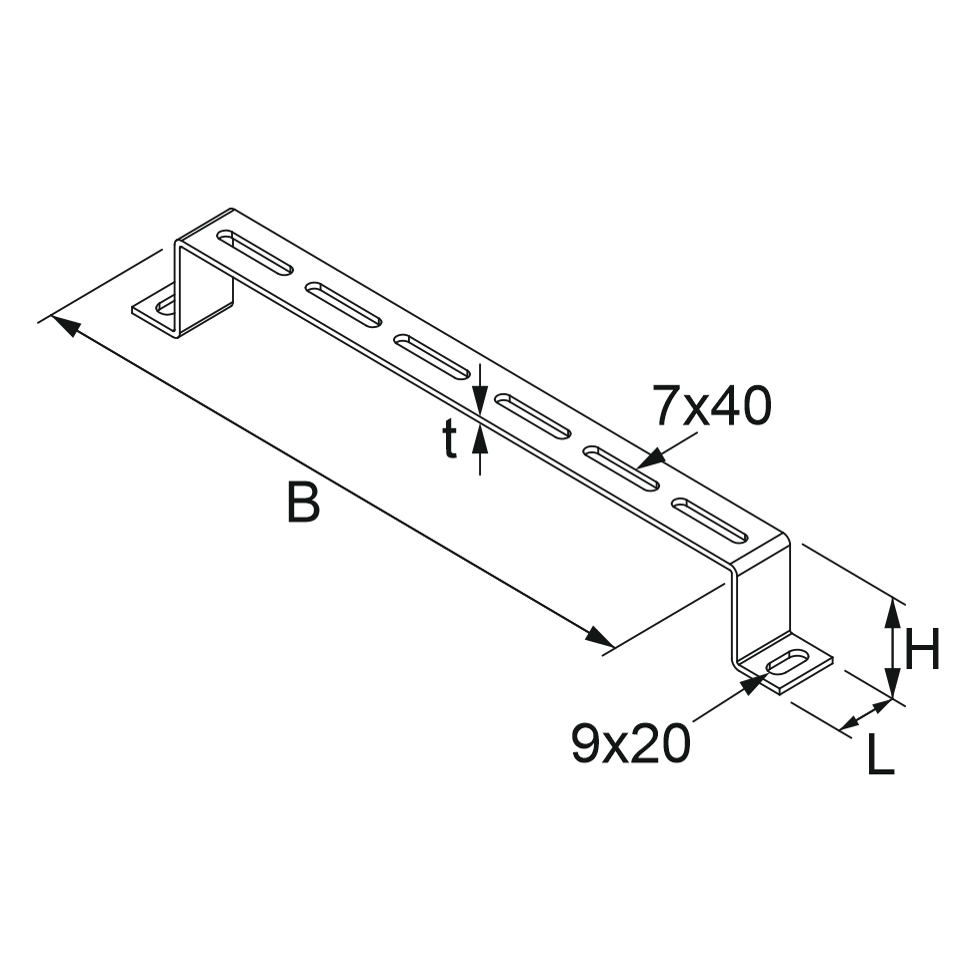

Name H[mm] B[mm] L[mm] t[mm] G[kg]
HB 50-010S
50
118
30
3,00
0,160
− +
HB 50-020S
50
218
30
3,00
0,218
− +
HB 50-030S
50
318
30
3,00
0,289
− +
HB 50-040S
50
418
40
3,00
0,501
− +
HB 50-050S
50
518
40
3,00
0,598
− +
HB 50-060S
50
618
40
3,00
0,695
− +

Hot-dip galvanized, according to BS 729 (EN ISO 1461)

Name H[mm] B[mm] L[mm] t[mm] G[kg]
HB 50-010F
50
118
30
3,00
0,171
− +
HB 50-020F
50
218
30
3,00
0,233
− +
HB 50-030F
50
318
30
3,00
0,309
− +
HB 50-040F
50
418
40
3,00
0,536
− +
HB 50-050F
50
518
40
3,00
0,640
− +
HB 50-060F
50
618
40
3,00
0,744
− +

Stainless steel, according to ASTM 304 / BS 304 S 3

Name H[mm] B[mm] L[mm] t[mm] G[kg]
HB 50-010E
50
118
30
3,00
0,163
− +
HB 50-020E
50
218
30
3,00
0,222
− +
HB 50-030E
50
318
30
3,00
0,295
− +
HB 50-040E
50
418
40
3,00
0,511
− +
HB 50-050E
50
518
40
3,00
0,610
− +
HB 50-060E
50
618
40
3,00
0,709
− +
