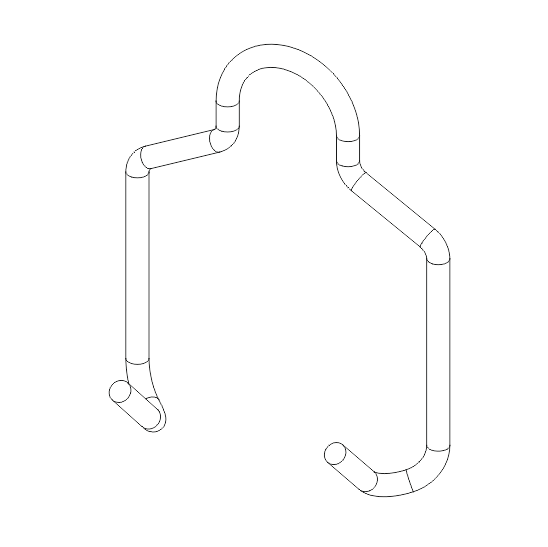

Suspension-bow

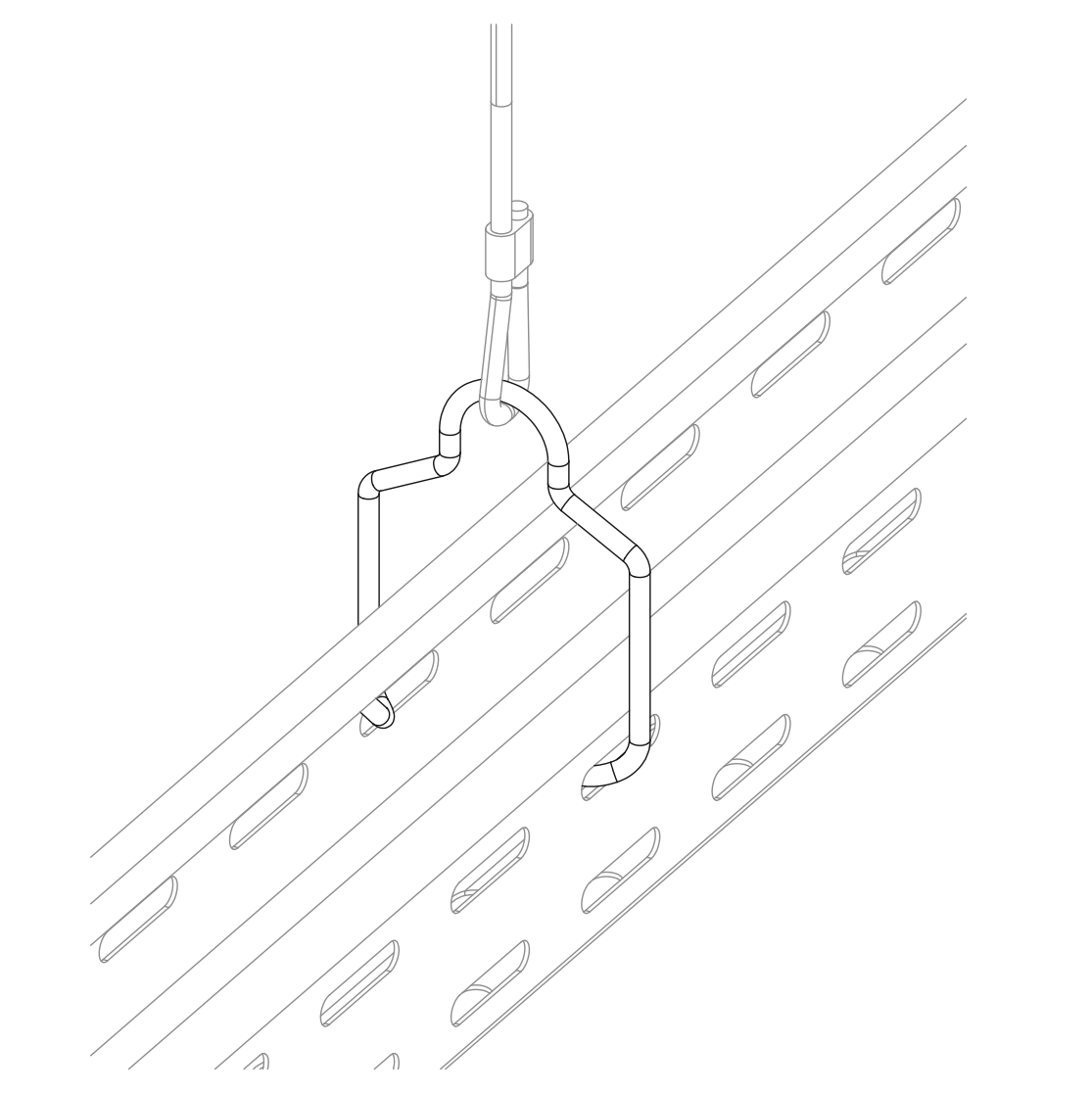

Suspension-bow for suspension of cable installation trays with chains
AHB
-
Karta Katalogowa AHB_PL
pdf | 102.96 KB -
Karta Katalogowa AHB_EN
pdf | 76.63 KB
Pre-galvanised (PN-EN 10244-2)

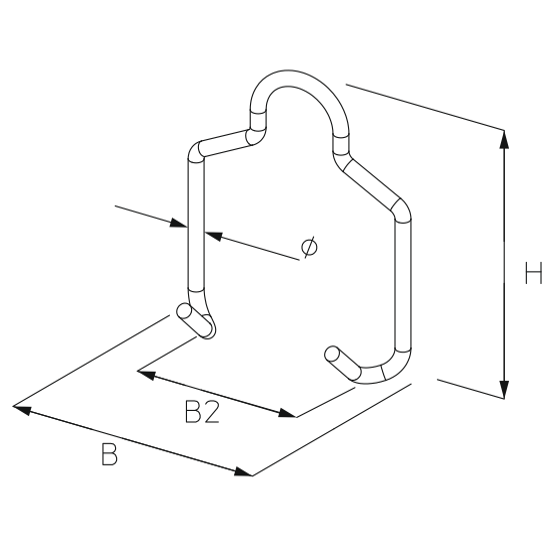

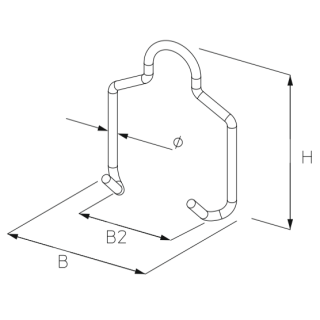

| Name | H[mm] | B[mm] | B2[mm] | Pmax[kN] | Ø[mm] | G[kg] | |
|---|---|---|---|---|---|---|---|
| AHB 05S |
80
|
64
|
35
|
0,70
|
4,00
|
0,024
|
|
| AHB 10S |
80
|
116
|
85
|
0,70
|
4,00
|
0,028
|
