Drabinka pionowa, standardowa.
STU 50
-
Karta Katalogowa STU 50_PL
pdf | 289.55 KB
Ocynk metodą Sendzimira, zgodnie z DIN EN 10346

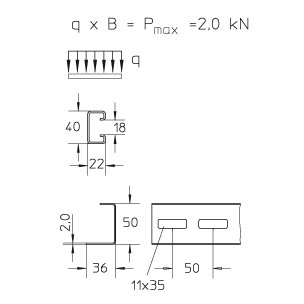

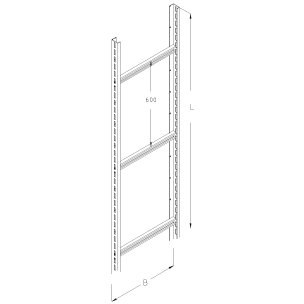

| Nazwa | B[mm] | L[mm] | Pmax[kN] | G[kg] | |
|---|---|---|---|---|---|
| STU 50-02-3S |
210
|
3000
|
2
|
9,75
|
|
| STU 50-03-3S |
300
|
3000
|
2
|
10,35
|
|
| STU 50-04-3S |
400
|
3000
|
2
|
10,9
|
|
| STU 50-05-3S |
500
|
3000
|
2
|
11,5
|
|
| STU 50-06-3S |
600
|
3000
|
2
|
12,05
|
|
| STU 50-07-3S |
700
|
3000
|
2
|
12,65
|
|
| STU 50-08-3S |
800
|
3000
|
2
|
13,25
|
|
| STU 50-02S |
210
|
6000
|
2
|
19,5
|
|
| STU 50-03S |
300
|
6000
|
2
|
20,7
|
|
| STU 50-04S |
400
|
6000
|
2
|
21,8
|
|
| STU 50-05S |
500
|
6000
|
2
|
23
|
|
| STU 50-06S |
600
|
6000
|
2
|
24,1
|
|
| STU 50-07S |
700
|
6000
|
2
|
25,3
|
|
| STU 50-08S |
800
|
6000
|
2
|
26,5
|
Ocynk zanurzeniowo-ogniowy, zgodnie z BS 729 (EN ISO 1461)
| Nazwa | B[mm] | L[mm] | Pmax[kN] | G[kg] | |
|---|---|---|---|---|---|
| STU 50-02-3F |
210
|
3000
|
2
|
10,5
|
|
| STU 50-03-3F |
300
|
3000
|
2
|
11,05
|
|
| STU 50-04-3F |
400
|
3000
|
2
|
11,65
|
|
| STU 50-05-3F |
500
|
3000
|
2
|
12,3
|
|
| STU 50-06-3F |
600
|
3000
|
2
|
12,9
|
|
| STU 50-07-3F |
700
|
3000
|
2
|
13,5
|
|
| STU 50-08-3F |
800
|
3000
|
2
|
14,15
|
|
| STU 50-02F |
210
|
6000
|
2
|
21
|
|
| STU 50-03F |
300
|
6000
|
2
|
22,1
|
|
| STU 50-04F |
400
|
6000
|
2
|
23,3
|
|
| STU 50-05F |
500
|
6000
|
2
|
24,6
|
|
| STU 50-06F |
600
|
6000
|
2
|
25,8
|
|
| STU 50-07F |
700
|
6000
|
2
|
27,1
|
|
| STU 50-08F |
800
|
6000
|
2
|
28,3
|
